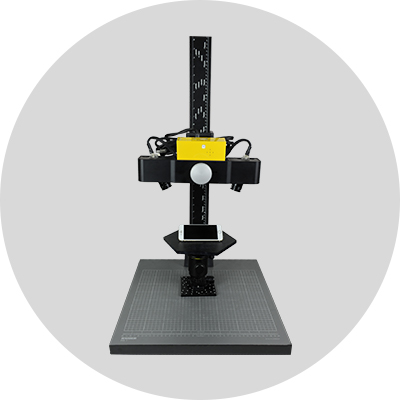

HL-3DM

Adopt heterodyne multi-frequency phase shift grating technology to improve the quality of scanning point cloud

Holon camera-type 3D scanner adopts new international coding calibration technology, which is the core mastery and application of 3D photogrammetry technology, reduces physical distortion and improves the scanning accuracy of original 3D data. Adopt heterodyne multi-frequency phase shift grating technology to improve the quality of scanning point cloud. Synchronized with the German gom company, it truly has a blue light device scanning system, and at the same time the camera-type three-dimensional scanner scans the data point distance of up to 0.01mm, which is suitable for fine workpiece scanning; adopts a new core design concept and uses carbon fiber materials to improve the stability of the product when working .

Product features

●High-precision motherboard data

  Measured with German high-precision measuring instrument,

the motherboard data is as high as 0.0002mm


●Automatic splicing of mark points

   Real-time display of automatic splicing during scanning,

objects can be flipped and moved arbitrarily during scanning

●The scanning speed is extremely fast

  Several million data points can be obtained within ≤3 seconds,

which is extremely efficient (the system can also be customized

according tocustomer needs)

●Using LED light source

  The service life of the light source is more than 35000h

●High precision

  Using unique measurement technology, the single-frame

scanning accuracy can reach ≤±0.005, and the accuracy is

higher with the three-dimensional photogrammetry system

●Easy to operate

  The user is easy to learn and use, and does not require

excessive training (2-3 working days), and can be proficient in operation


Technical advantages

Industrial lens

Imported original lens, scanning noise rate is extremely low, million-level industrial lens, optical distortion is small

Multi-frequency phase shift grating

Synchronized foreign grating technology, heterodyne multi-frequency phase shift grating; uniform fringe projection, point cloud data with high precision and no noise data; micro-structured light projection adopts LED cold light source, and the light source life is more than 35000h

industrial design

The hardware is small and uses less space; it is convenient to carry around, easy to disassemble and assemble; a variety of scanning modes can be selected at will

Calibration technique

Synchronized foreign grating technology, heterodyne multi-frequency phase shift grating; uniform fringe projection, point cloud data with high precision and no noise data; micro-structured light projection adopts LED cold light source, and the light source life is more than 35000h

specification

Product numberHL-3DM (binocular)HL-3DM+ (four mesh)
Field of applicationPrecision molds, electronic components, jewelry design, electronic connectors, etc. Reverse engineering, 3D inspection
scanning methodNon-contact 3D scanning (photographed 3D scanning)
Projection, grating technologyMicrostructured light projection, extrapolation multi-frequency phase shifting technique (optional Blu-ray/white light)
Calibration techniqueRing code calibration (13 steps)
Single scan range (mm)Independent mode100×75100×75
50×40
Adjustment mode400×300400×300
200×150200×150
50×4030×20
Single measurement accuracy (mm)±0.005
Single-sided scan time (S)<5,<3
Stitching methodAutomatic intelligent stitching Manual feature stitching
Scannable object range (mm)10~2000
Average sampling point distance (mm)0.01-0.47
Industrial 3D photogrammetrySupport industrial 3D photogrammetric splicing engineering coordinate point file import (≤±0.01mm/m)
industrial cameraResolution (pixels)1.13 million pixels (optional 2 million, 3 million or 5 million pixels)
Resolution (pixels)18 degrees, 27 degrees, 32.5 degrees
Industrial lens (mm)8,12,16,25,35 Depending on the model
Calibration unitMetal/granite
Industrial consolePortable tripod / dedicated console
Data output formatASC,STL,PLY, IGES
System operationWindows xp/windows 7/windows 10 32 bit / 64 bit Chinese / English
Light source, energy (W)Standard 100 W halogen lamp; LED 50 W high energy LED (White); high energy lamp (HPL) 250 W halogen lamp
Working temperature, power supply0~40℃、100~240V AC
Scanning deviceSystem size (mm)492x180x175580x190x180
System weight (kg)3.33.5

video

Product accessories

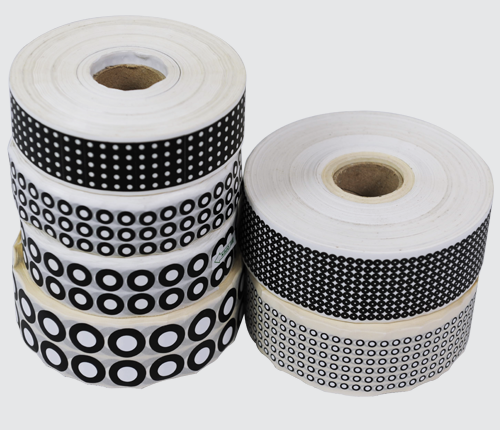

哑光标志点

脚型标志点

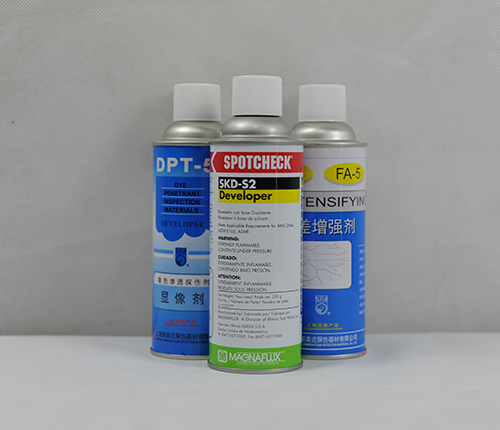

显像剂
