Well-known grain and oil enterprises in China need to conduct three-dimensional inspection of oil rollers, and Hualang 3D provides solutions for the enterprises to provide solutions for the oil rollers used in the enterprise that cannot operate normally.

    When the oil roller is operating in a high temperature and high pressure environment for a long time, based on the working principle of the oil roller, the surface is easy to dent, resulting in uneven overall surface pressure of the oil roller, and the efficiency of subsequent oil pressing will be greatly reduced

3D scanning of the oil roller

面临问题|Practical problems

   1. The body of the oil pressure roller is large and difficult to detect, and it is necessary to measure the subtle errors on the surface of the oil pressure roller to ensure the working efficiency and time cycle of the oil pressure roller
   2. Customers need to quickly scan the oil pressure roller, and the scanning data requires high accuracy.

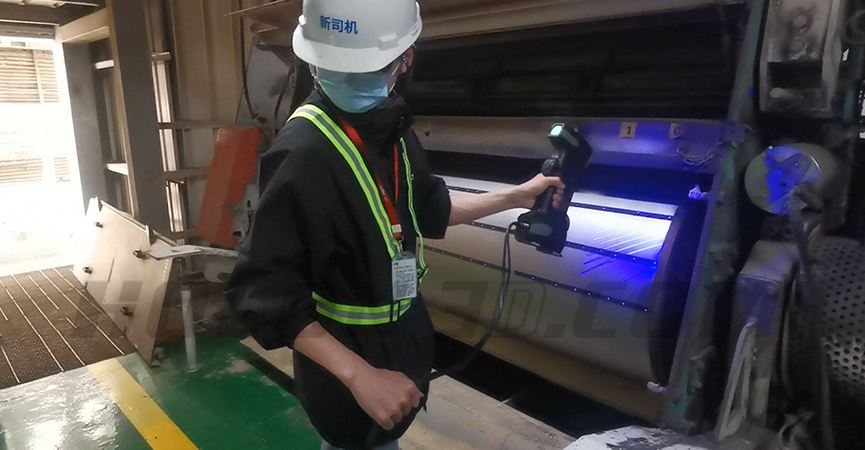

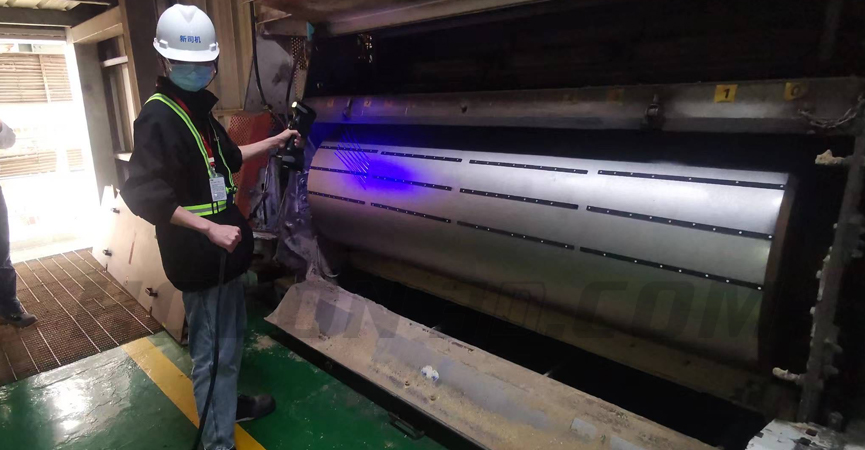

3D scanning site view of oil pressure rollers

解决方案|Holon solutions

In the inspection of oil pressure rolls, due to the huge and bulky volume, the surface data requires very high accuracy, and the traditional detection method is used to measure, and many fine defects cannot be effectively measured, which is easy to produce secondary errors and affect the subsequent use of the equipment. In order to abandon traditional inspection methods, the company used a handheld 3D scanner to inspect the product quality of the oil pressure roller and develop a fast and efficient inspection plan. Hualang technical engineers proposed a solution: use the handheld 3D scanner to collect 3D data from the surface to obtain a 3D inspection and analysis report, which provides an effective solution for efficient production of enterprises.

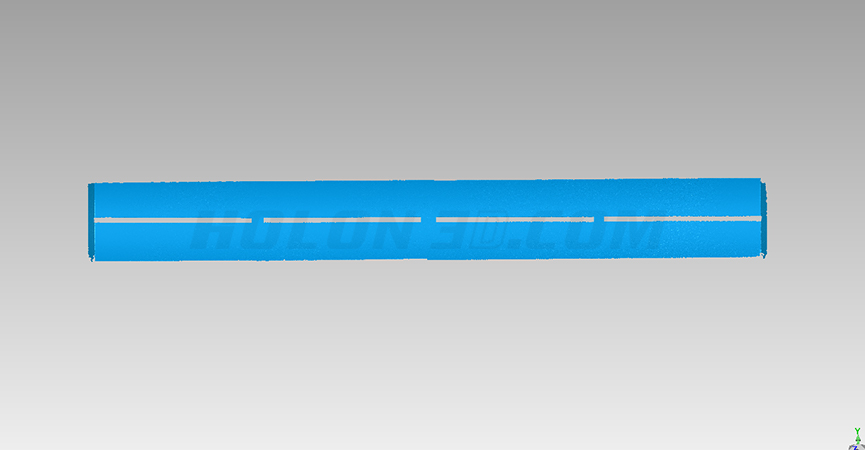

Pressure roller STL data chart

Three-dimensional comparison chart of oil pressure rollers

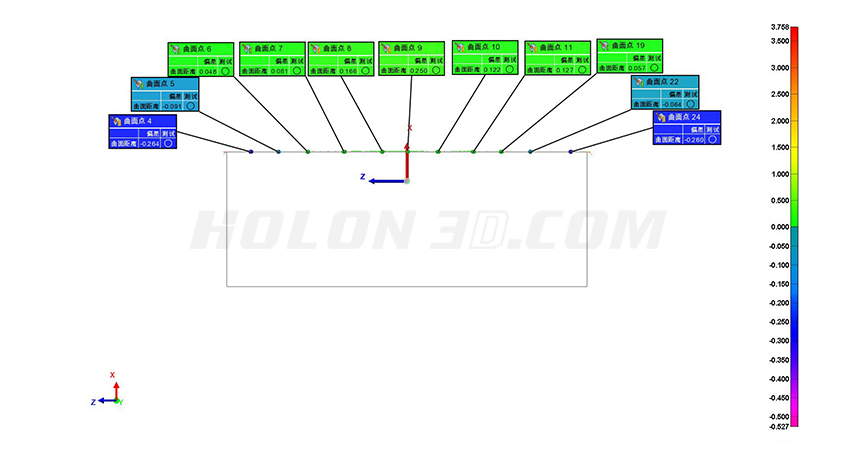

Two-dimensional comparison chart of oil pressure roller
