3D inspection of super large steel castings

2021-11-04 A+ A A-

The vibrating screen equipment works by using the reciprocating vibration generated by the vibrator to generate the reciprocating vibration on the screen surface. The work is complex and requires high and easy to wear. It requires daily maintenance and regular maintenance and overhaul to ensure production. Normal operation. A domestic customer needs to perform three-dimensional inspection on the vibrating screen equipment. As the world's second largest casting, the vibrating screen is large and tall. Scanning is a big project. After the customer understands the data scanned by the Hualang 3D scanner , Feel very satisfied, and purchase equipment.

Practical problems

Because the vibrating screen equipment is a large workpiece, it is large and inconvenient to move, the surface is uneven, covered with many small screw-like bumps, and there are a few holes. The screen surface is inclined and curved, and other parts are connected by bolts to form some included angles. Ordinary 3D scanners are inconvenient to measure, slow and time-consuming, and obtain inaccurate data, which cannot meet current needs.

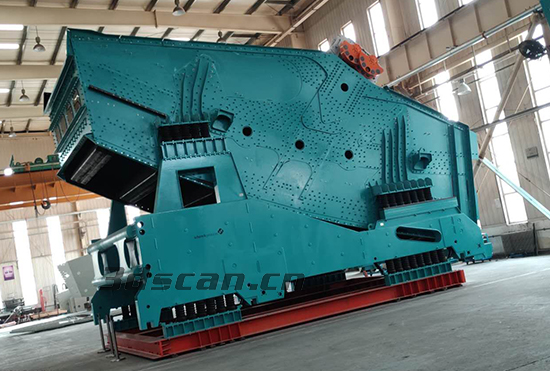

Real shots of super large castings on site

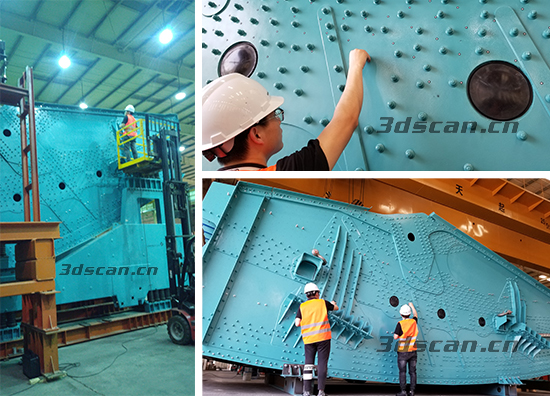

holon staff posted signs and dots

Holon  solutions

It adopts Hualang 3D's handheld 3D scanner HOLON760 and 3D photogrammetry HL-3DP. HOLON760 has fast scanning speed and high accuracy. It can be switched to a single laser scanning mode, which is suitable for scanning deep holes and dead angles. It is easy to operate, unlimited, and has a wide scanning range. In addition, the use of 3DP can reduce the cumulative error of 3D scanning data splicing when scanning large workpieces for measurement, realize rapid scanning of large workpieces, and fast data processing and reduce errors. Can effectively solve the problem.

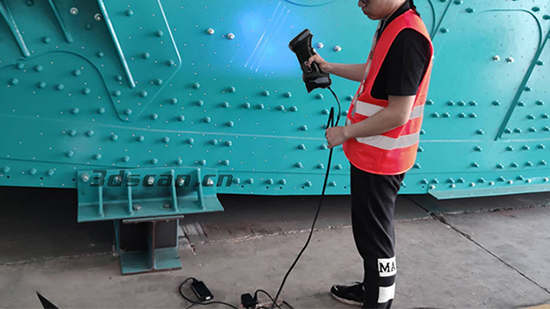

On-site scan map of super large castings

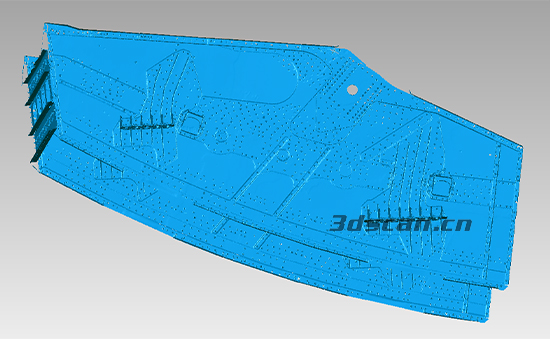

STL data chart of super large castings

STL data chart of super large castings

STL data chart of super large castings
