The engine is a machine that provides power to the machine. It is the heart of the machine. It will affect the power, economy and environmental protection of the machine. It is a very core component. Therefore, no matter how good the appearance of the machine is, it is not as important as having a good engine. Whether it is in terms of design, manufacturing, technology, performance, and control, it is constantly improving. Now the focus is not only on machine power, but also on energy consumption, exhaust emissions and environmental aspects. Manufacturers are trying to modify the performance of the engine to improve the competitiveness of their products. A certain manufacturer needs to use a scanner to scan the engine for quality inspection and R&D data analysis.
Practical problems
The engine is composed of many systems, large and bulky, inconvenient to move, the overall surface is complex and irregular, there are many holes, and the size of the hole is different, the hole depth, the scanning difficulty increases, and the customer requires high scanning data accuracy. In the case of using a general scanner, for some deep holes, the undulating surface is not easy to capture, the accuracy is low, and it consumes too much time and manpower, which cannot meet the various requirements of customers.

Engine scan
Holon solutions
According to the problem of the workpiece, Hualang engineers proposed to use the HOLON760 handheld 3D scanner, 14+1 laser lines to scan the workpiece ultra-fast, can switch the single laser scanning mode, specifically scan the deep hole, the scanning process can be displayed in real time, clearly see the scan The effect and the overlooked points can be directly supplemented, which is convenient to operate, easy to carry, and saves material resources. High scanning accuracy, easy to scan large and medium-sized objects. After the customers watched the scanning process and scanned the data, they felt that it was suitable for their operation, met their needs, and the scanning effect was very good.

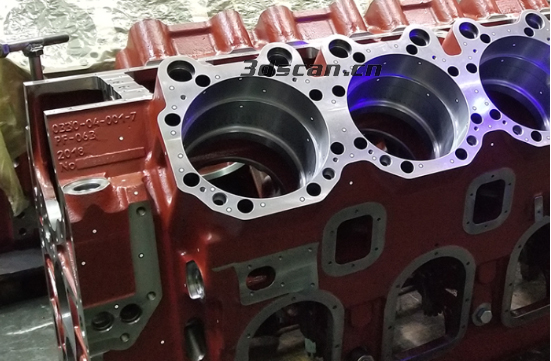

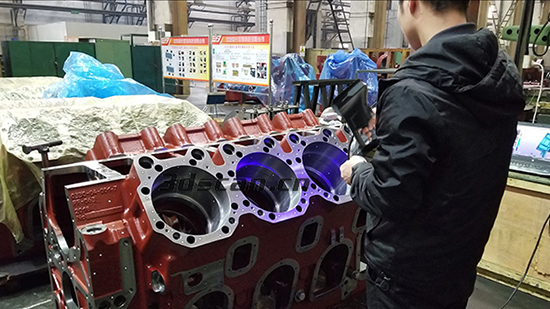

Engine site scan map

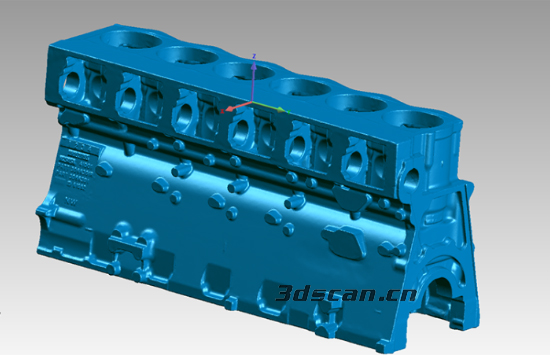

Engine STL data graph

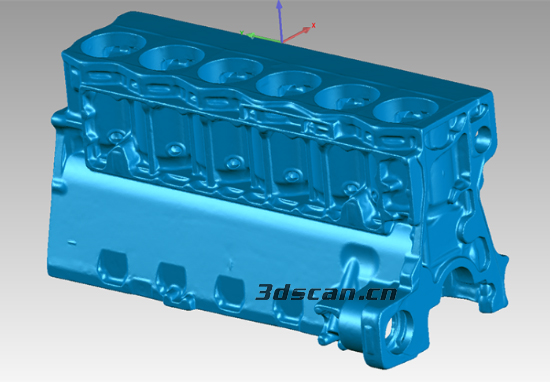

Engine STL data graph

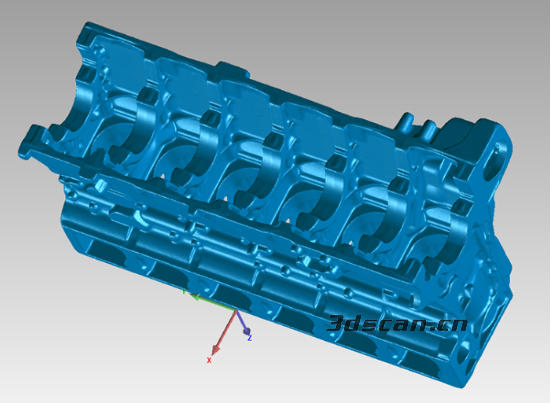

Engine STL data graph
